Zoom Room Display Options: How to Configure Your Layout

Zoom room display options determine where participants and shared content appear. The key is separating room defaults in the web portal from layout changes made on the controller during a meeting.

This guide covers single- and multi-display layouts, screen order, and the controls presenters use during a call. Available choices depend on the room hardware, Zoom Rooms version, and whether someone is sharing.

Whether you manage a single-display huddle room or a larger boardroom, start with the hardware you actually have and test the layout from the seats people use.

Understanding Zoom Room display layouts

A layout combines the number and order of physical screens with the views shown on them. Reviewing how the room was put together helps distinguish a wiring or detection problem from a layout setting.

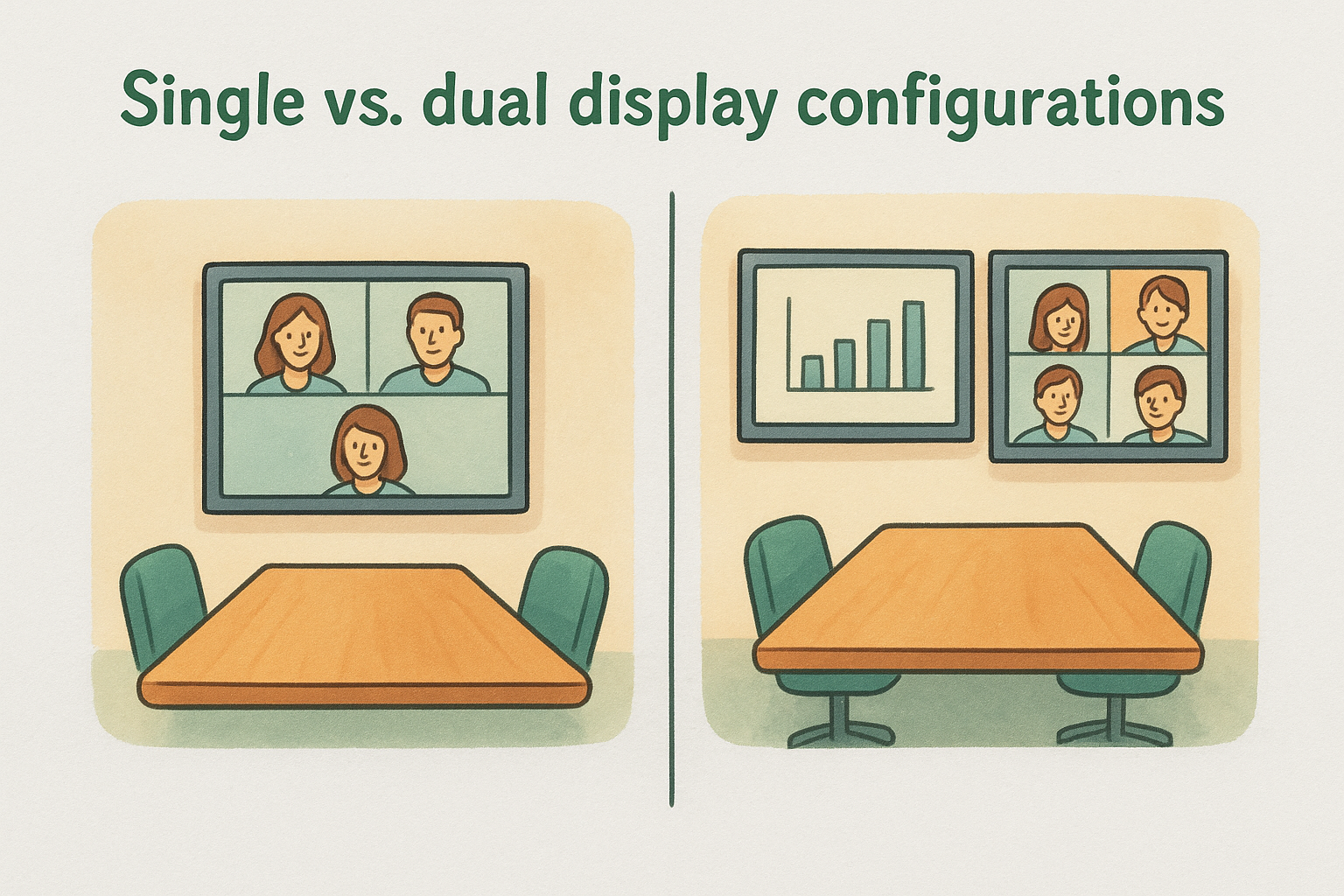

Single vs. dual display configurations

One display must accommodate both people and presentations. Two displays let you separate them, which can help in larger meeting spaces. These are planning examples, not room-size requirements:

Content view, video view, and gallery view

Common choices include Speaker, Gallery, and Thumbnail views. Shared content changes the available layouts. For example, Gallery is not available on a single-display Zoom Room while content is being shared.

Choose a layout for the meeting, then check that everyone can read the content and see the people they need to see.

Do not confuse a display count with a view name. Gallery describes participant arrangement, not how many physical screens the room supports.

Step 1. Open the display settings in the Zoom web portal

Sign in to the Zoom web portal with permission to edit the room. Under Room Management > Zoom Rooms, select Edit for that room and open the Display tab. Zoom also supports account- and location-level defaults, so check the scope before making changes.

For a room-specific setup:

1. Select the room and open its Display tab.
2. Review the layout matching the room’s installed display count.
3. Check supported display outputs for your Zoom Room certified equipment.
4. Save the chosen defaults and verify them in a test meeting.

If a screen is missing or shows the same desktop as another, check connections and the operating system first. On Windows and macOS room computers, use an extended desktop rather than mirroring. Zoom documents the details in its display configuration guide.

Step 2. Set the layout for a single display room

In the portal, review the layout for one display. Then join a test meeting and tap View on the room controller to see the choices available in that meeting.

The main single-display views serve different purposes:

• Speaker: emphasizes the active speaker or shared content, with a thumbnail when sharing.
• Thumbnail: shows a strip of recent speakers alongside the main view.
• Gallery: shows a grid of participants when the single-display room is not sharing content.

Check shared slides from the farthest seat. Small text, viewing distance, and thumbnail placement all affect readability; there is no single screen-size cutoff that works for every room.

On one screen, balance content readability with the need to see remote participants.

Use the portal for room defaults and the controller for meeting-time changes. Follow Zoom’s video layout guidance for version-specific controls.

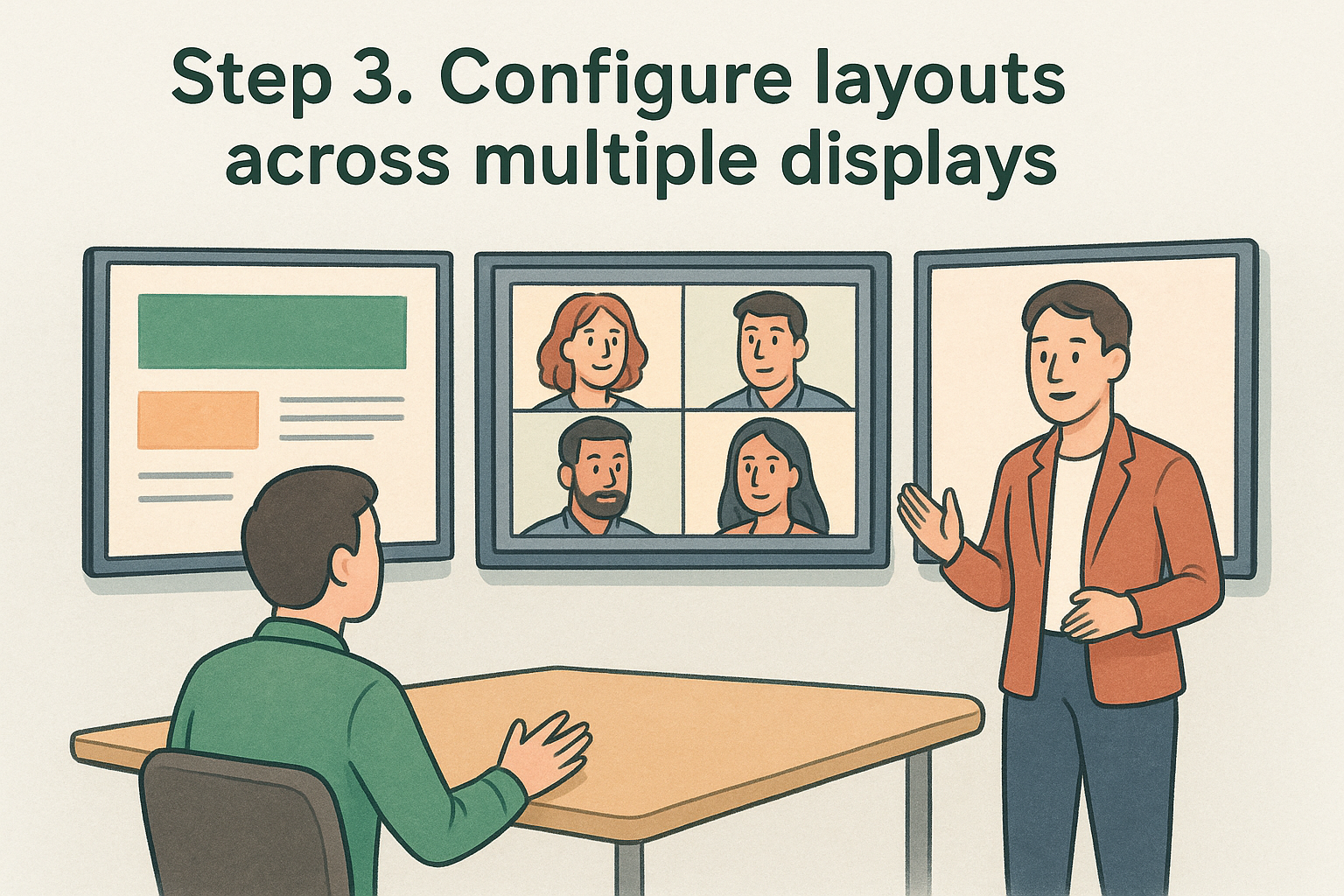

Step 3. Configure layouts across multiple displays

For multiple screens, use Settings > Arrange Display on the controller to match the on-screen numbers to the physical arrangement. Then review the corresponding two- or three-display layout in the portal. A practical starting arrangement is:

• Content display: keep the presentation easy to read.
• Participant display: use speaker or gallery view as appropriate.
• Additional display: choose a supported view or confidence-monitor role that serves the room.

Zoom supports standard layouts for up to three displays. A fourth display is supported only as a confidence monitor in supported configurations, not as another general-purpose gallery screen.

Separate content and people when that helps the meeting, but thumbnail-plus-content layouts can also be useful.

Matching orientation to room shape

Choose physical positions based on sightlines, camera placement, and presenter needs. Avoid assuming that content must always go on the left or video on top. As with any video conferencing setup, test from several seats before accepting the room.

Step 4. Adjust the view during screen sharing

Start a share using the room’s supported cable connection or wireless presentation system. Test the actual sharing workflow users will follow, since an external presentation device may route content differently from a native Zoom share.

Use the available meeting controls to adjust the result:

• View: change the available participant layout.
• Options in single-display Speaker view: adjust the thumbnail or swap the main content and video emphasis.
• Change Content: select shared sources when multiple content sharing is enabled.

For simultaneous shares, the admin must enable Allow multiple content sharing. The controller then provides Share > Change View > Change Content to assign shared sources to displays. See Zoom’s multiple-screen sharing instructions.

Give presenters a short, tested set of instructions for changing the view and returning to the preferred layout.

Before handoff, test joining, starting and stopping a share, switching speakers, and ending the meeting. Confirm both screen behavior and content readability, then document the room’s chosen defaults.

Keeping your meeting room displays running smoothly

Reliable Zoom room display options start with correctly connected screens, a deliberate default layout, and a clear sharing workflow. Use the portal to establish defaults and the controller to adapt the view during a meeting.
