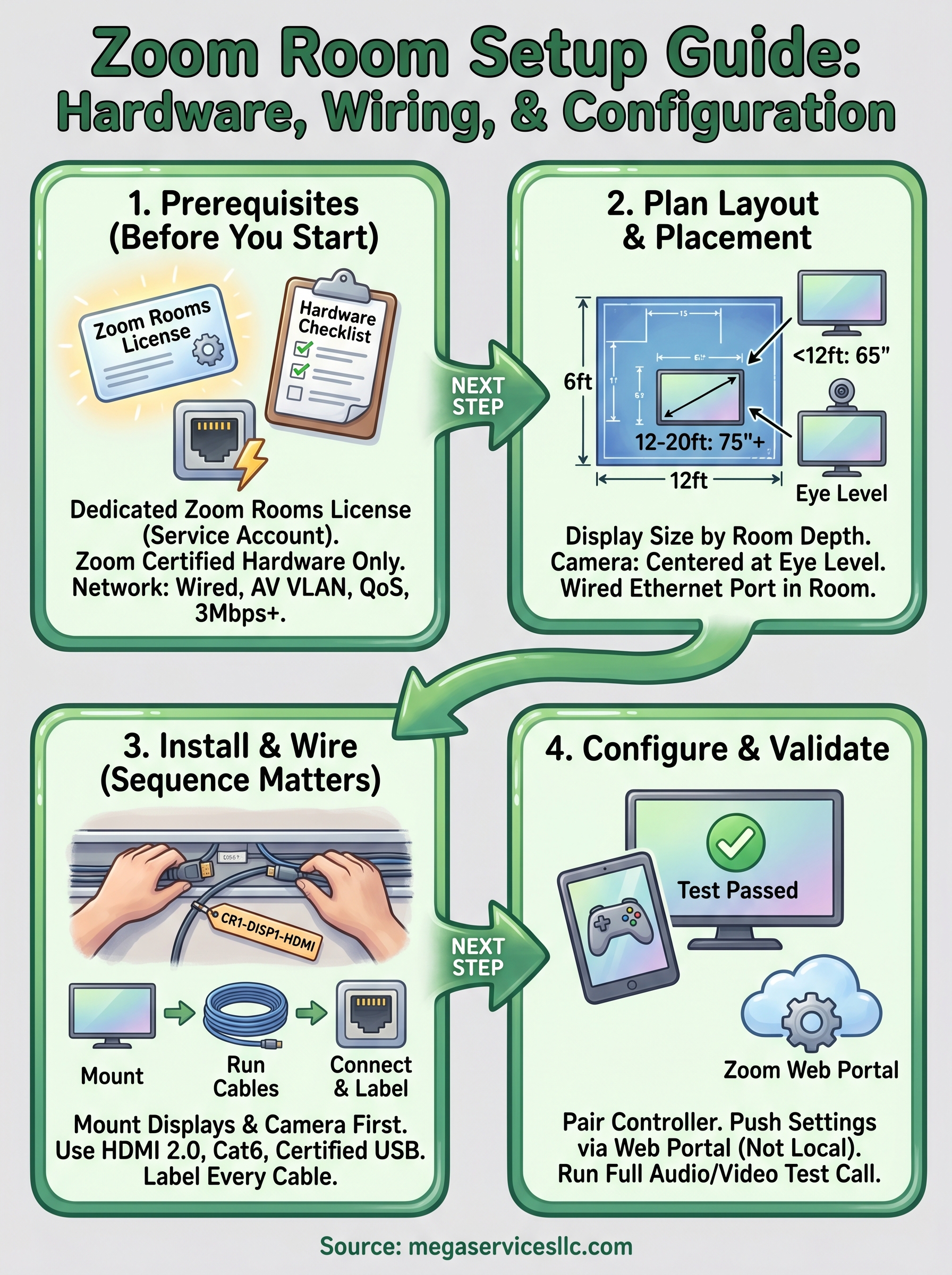

Zoom Room Setup Guide: Hardware, Wiring, And Configuration

A Zoom Room is more than a laptop on a conference table. It’s a dedicated, always-ready meeting space with purpose-built hardware, structured cabling, and software configuration that all need to work together without a hitch. Getting it right means your team walks in, taps a button, and connects. Getting it wrong means dropped calls, echo issues, and a room nobody wants to use. This Zoom Room setup guide breaks down exactly what goes into building one that actually performs, from hardware selection to final system configuration.

Whether you’re outfitting a single huddle room or rolling out Zoom Rooms across dozens of locations, the physical and technical details matter. At MegaServices, we’ve supported AV integrators and project managers with certified technicians for room deployments nationwide since 2007. We’ve seen what makes these installs succeed, and where they commonly fall apart. That hands-on experience shaped this guide.

Below, you’ll find a step-by-step walkthrough covering room planning, component wiring, display and audio placement, network requirements, and Zoom software configuration. Each section is built to help you execute a clean, professional install the first time.

What you need before you start

Before you run a single cable or mount a display, confirm you have all the prerequisites in place. Skipping this step is the most common reason installs stall mid-project. This zoom room setup guide assumes you’re starting from scratch, so this section covers every account, license, hardware component, and network condition you need to verify before any physical work begins.

Your Zoom Rooms License and Account

Every Zoom Room requires a dedicated Zoom Rooms license, separate from a standard Zoom Meetings license. Log into your Zoom account portal and confirm you have a Zoom Rooms license assigned before anything else. Each physical room needs its own license, so if you’re deploying multiple rooms, assign licenses room by room before any technician arrives on site. You’ll also need a Zoom admin account with Room Management privileges to push configurations, apply settings profiles, and monitor room health from the web portal.

Assign your Zoom Rooms license to a shared calendar-enabled service account rather than a personal user account, so room scheduling integrates cleanly with Google Calendar or Microsoft Exchange.

Hardware and Software Checklist

A complete Zoom Room system requires several components working together. Missing even one piece can prevent the room from going live. Before ordering equipment, match your component list against your room size and use case. Here’s what a standard room deployment requires:

The Zoom Rooms app runs on Windows or macOS. Download the latest version directly from Zoom before your install date so you’re not troubleshooting connectivity problems on-site.

Network Minimums

Your network setup directly affects call quality and reliability. Zoom recommends at least 3 Mbps up and down per room for HD video, and 10 Mbps for 1080p gallery-view calls with active screen sharing. Beyond raw bandwidth, confirm the room’s network port sits on a dedicated AV VLAN, that QoS tagging is active for video packets, and that the switch or access point can sustain consistent throughput. A wired Ethernet connection is always preferable over Wi-Fi for a permanent Zoom Room installation.

Step 1. Plan the room, layout, and network

Planning is where a successful Zoom Room deployment starts. Before any hardware arrives on site, measure the room dimensions and document every outlet, conduit path, and network port location. A clear room plan prevents costly rework once installation begins.

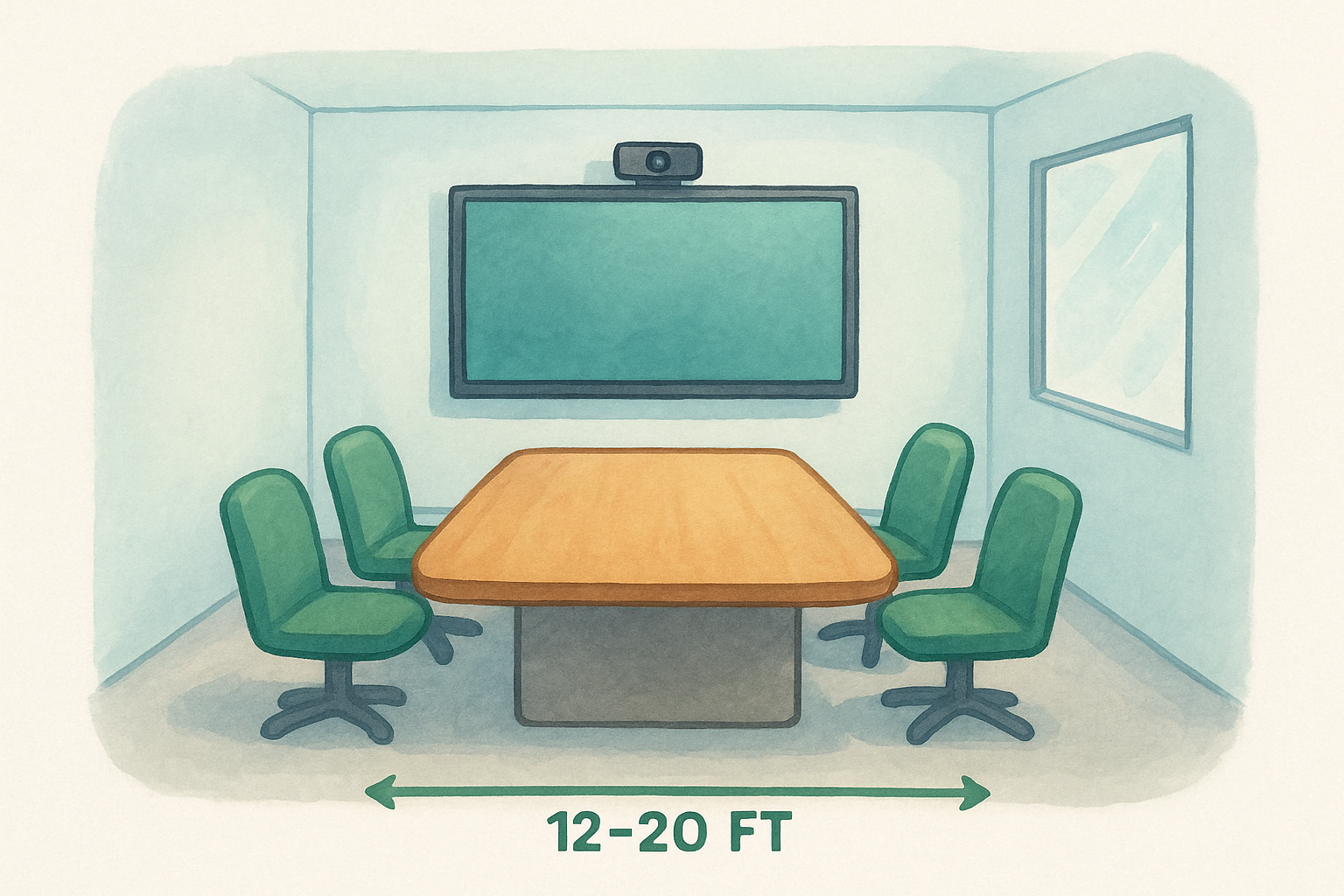

Room Size and Display Placement

Your room size determines nearly every hardware decision you’ll make later in this zoom room setup guide. For a huddle room up to 12 feet deep, a single 65-inch display works. Rooms between 12 and 20 feet need a 75-inch or larger panel, and spaces beyond 20 feet typically require dual displays or a projection setup. Place your primary display directly opposite the main seating area so participants on the far side can read shared content without straining.

Camera placement follows your display position. Mount the camera at eye level above or below the primary display, centered horizontally. This keeps remote participants from looking up at your team’s foreheads or down at their chins, which kills natural conversation flow.

For rooms deeper than 15 feet, a PTZ camera with optical zoom gives you far more flexibility than a wide-angle fixed lens.

Network Infrastructure

Confirm a dedicated wired Ethernet port is available inside the room before scheduling your install. A permanently installed Zoom Room should never rely on Wi-Fi. Run Cat6 or Cat6A to the compute device location, verify the switch port is tagged to your AV VLAN, and confirm with your IT team that QoS policies are active on that VLAN. Test throughput with a wired device before any AV equipment is installed so you’re not chasing network issues mid-install.

Step 2. Choose the right Zoom Rooms hardware

Hardware selection is where most Zoom Room installs go wrong. Buying off-brand components or mixing unverified gear creates compatibility issues that surface during live calls, not during procurement. Use Zoom’s hardware certification list as your starting point, and only select devices listed there for your compute device, controller, camera, and audio components. This zoom room setup guide recommends locking your hardware list before ordering anything, since returns on installed AV gear are rarely straightforward.

Cameras and Audio Components

Your camera and audio setup determine how well remote participants experience your room. For rooms under 12 feet, a wide-angle USB camera like the Logitech Rally Bar handles both audio and video in a single unit. Larger rooms need a PTZ camera with a separate DSP processor, such as the Poly Studio E70 paired with a Shure MXA ceiling microphone array.

Verify that your speakerphone or DSP processor is on Zoom’s certified peripherals list before purchase. Uncertified audio hardware is the most common source of echo and dropout complaints after install.

Compute Device and Controller

Your compute device runs the Zoom Rooms app and must meet Zoom’s minimum specs: a quad-core processor, 8GB RAM, and Windows 10 or later. Many integrators deploy certified appliances from manufacturers like DTEN or Neat to cut configuration time and guarantee software compatibility out of the box.

For your controller, an iPad running the Zoom Rooms Controller app is the most reliable choice and the most widely supported. Certified Android tablets work as an alternative when managed through Zoom Device Management, but confirm firmware compatibility before committing to that path on a multi-room rollout.

Step 3. Install and wire the conference room

With your plan confirmed and hardware on hand, physical installation begins. Work in sequence: mount your displays and camera first, then run cables, and finally connect and label everything before powering any device on. Rushing this order creates tangled cable paths and makes troubleshooting nearly impossible once the room is live.

Mount the Displays and Camera

Start by mounting your primary display at the correct height. The center of the screen should sit at seated eye level, typically 48 to 54 inches from the finished floor. Use a tilt mount so participants at the front of the table aren’t craning their necks. Mount your camera directly above or below the display, centered horizontally, and secure it to a manufacturer-approved mount rated for the camera’s weight.

Never position your camera more than 12 inches above the top of the display, or remote participants will see an unnatural downward angle on your team.

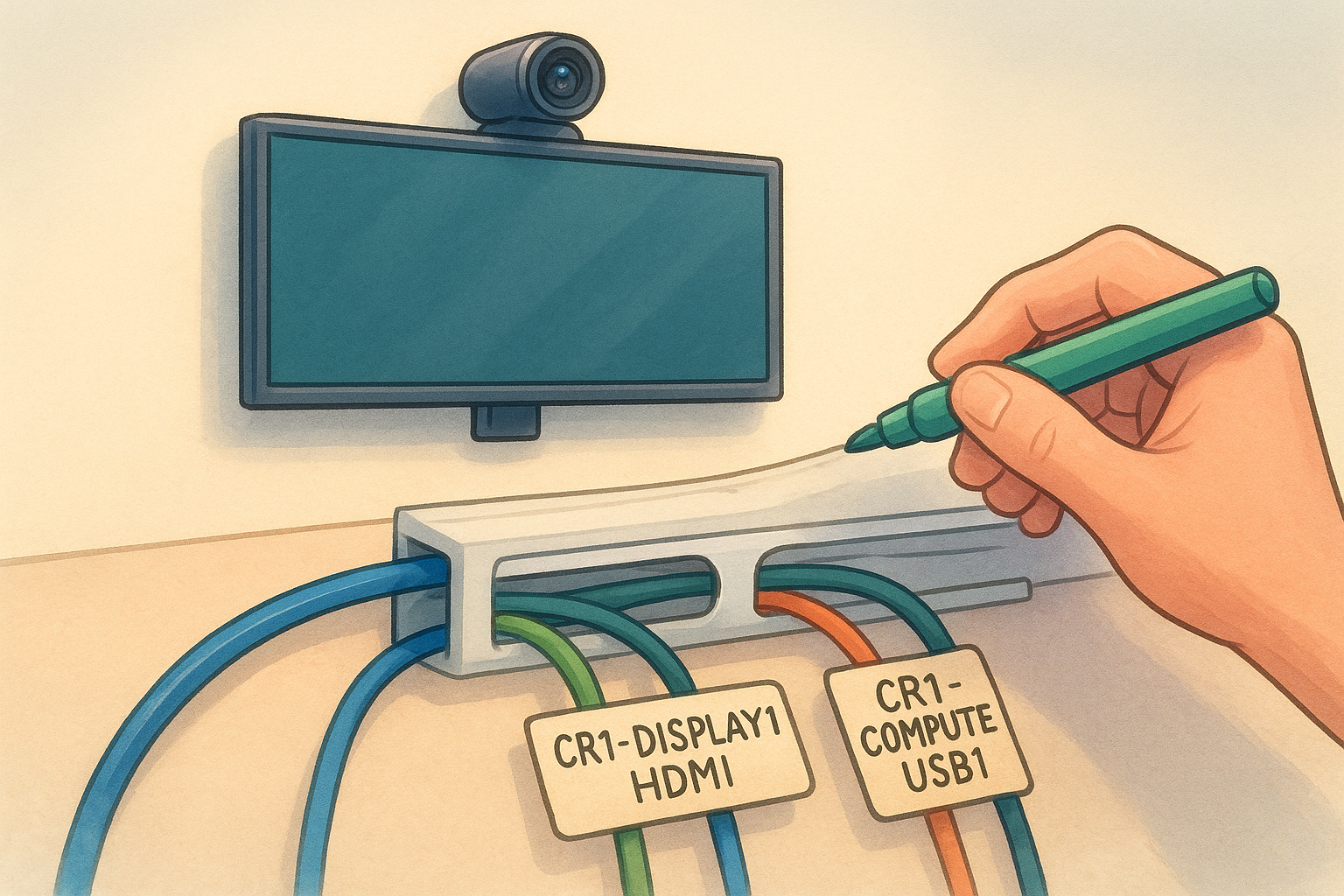

Run and Label Your Cables

Cable management is where many installs become a long-term maintenance problem. Run all signal cables through conduit or raceways rather than loose along walls. Use HDMI 2.0 certified cables for video signal, Cat6 for network, and USB 3.0 cables no longer than 16 feet without an active repeater. Label both ends of every cable using a consistent naming format before you terminate anything.

Use this cable labeling format as a starting point:

Following this format throughout your zoom room setup guide install keeps every cable traceable and identifiable when something needs to be replaced or tested months later.

Step 4. Configure Zoom Rooms and validate performance

With your hardware connected and cables labeled, software configuration is the final step before the room goes live. Power on your compute device, launch the Zoom Rooms app, and sign in using your dedicated service account rather than a personal user account. The app will prompt you to pair the controller, which you complete by entering the pairing code displayed on the compute device screen into the Zoom Rooms Controller app on your iPad.

Activate and Configure the Zoom Rooms App

Once paired, log into the Zoom web portal as an admin and navigate to Room Management to push your room’s settings profile. Set your default camera, microphone, and speaker within the room profile rather than on the device itself, so settings persist if the app restarts. Apply the following baseline configuration to every room in your deployment:

Push all configurations from the Zoom web portal rather than adjusting settings locally on each device, or your settings will drift across rooms over time.

Test Audio, Video, and Call Performance

After applying your settings profile, run a full test call using Zoom’s built-in meeting test feature before anyone uses the room for a real meeting. Check that your camera angle, microphone gain, and speaker output all perform correctly. Confirm that shared content displays at full resolution on the room panel. This final validation step is the last checkpoint in this zoom room setup guide, and it’s the one most commonly skipped, which leads to avoidable complaints after launch.

Wrap-up and what to do next

This zoom room setup guide covered every phase of a professional Zoom Room deployment: pre-install planning, hardware selection, physical installation, cable management, and software configuration. Each step builds on the one before it, so skipping ahead or cutting corners on any phase compounds into bigger problems during your validation testing or after the room goes live.

Your next move depends on your situation. If you’re managing a single room deployment, you now have everything you need to execute it cleanly. If you’re rolling out Zoom Rooms across multiple locations, the biggest challenge shifts from technical knowledge to finding certified technicians in each market who can execute to a consistent standard. That’s where MegaServices helps integrators and project managers scale without sacrificing quality. Our vetted AV technicians are deployable nationwide within 24 to 48 hours.
